Description

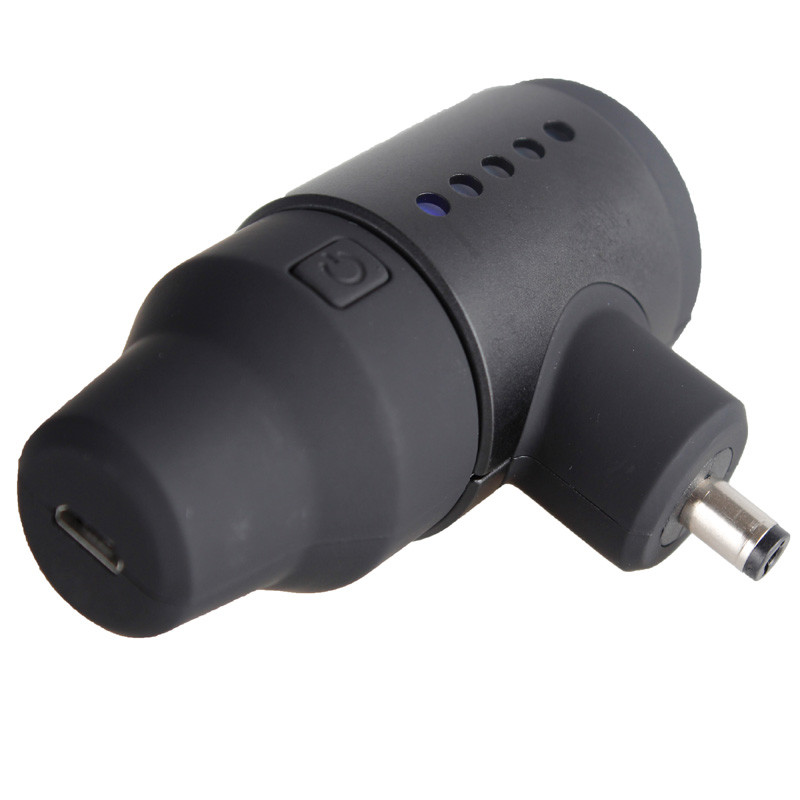

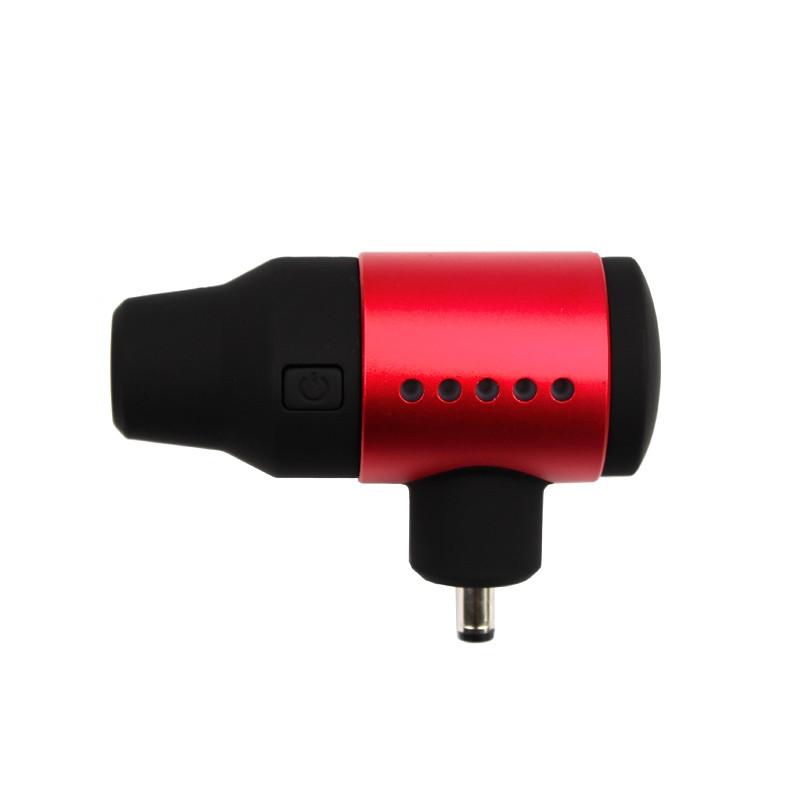

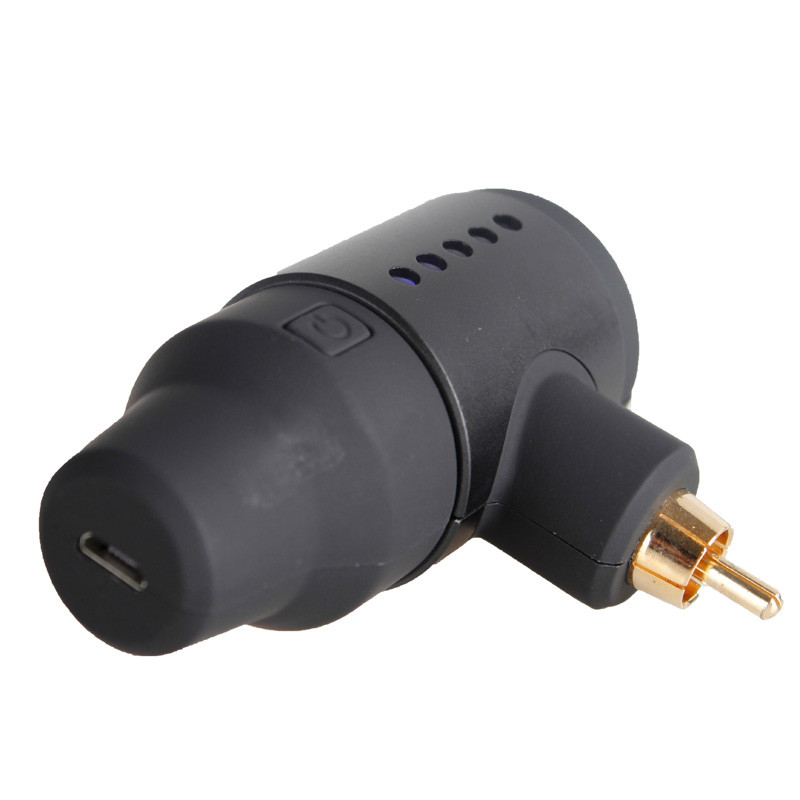

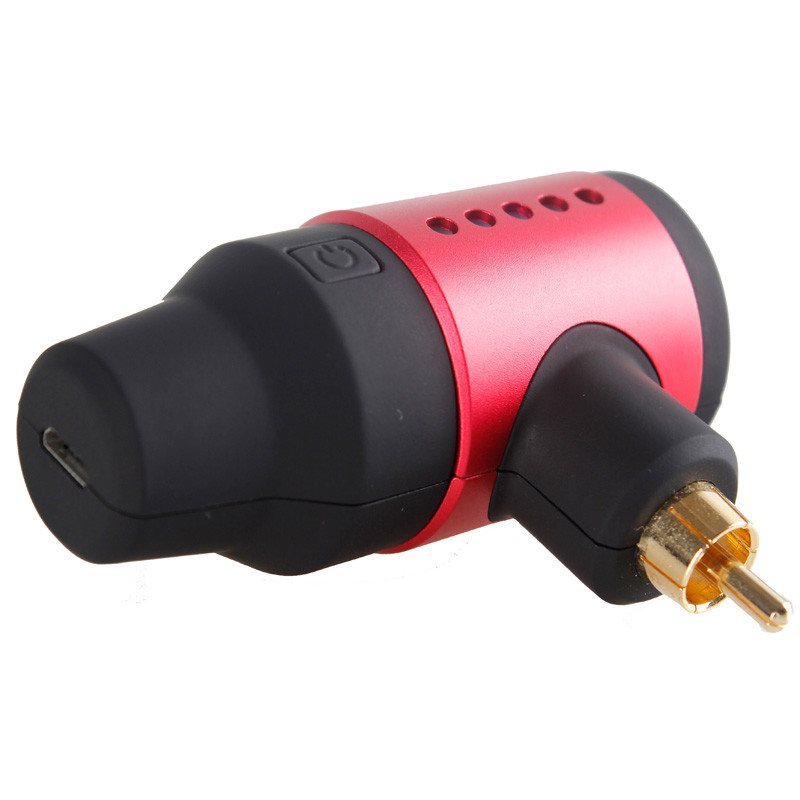

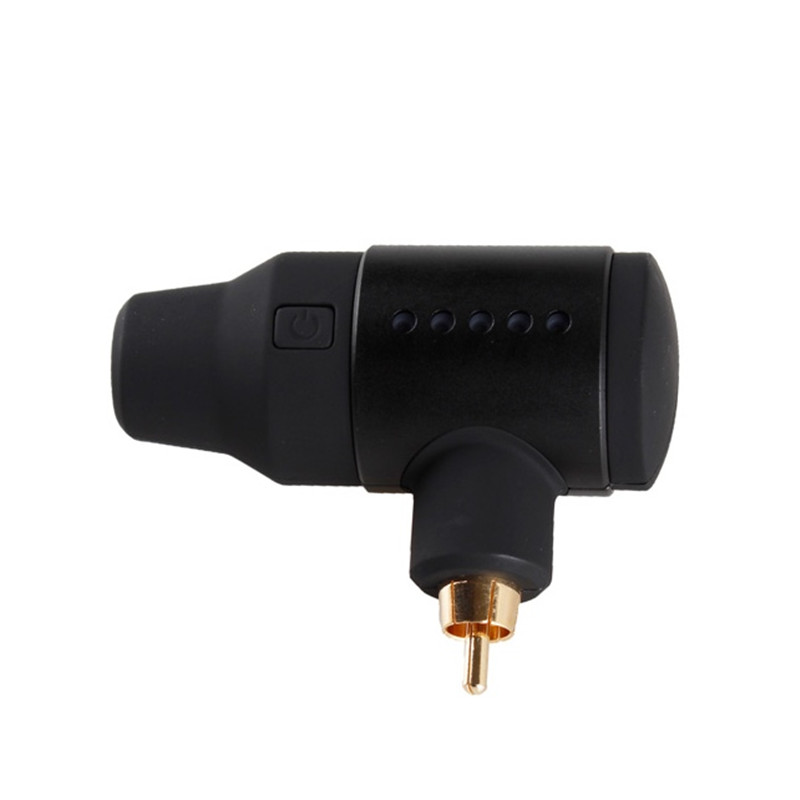

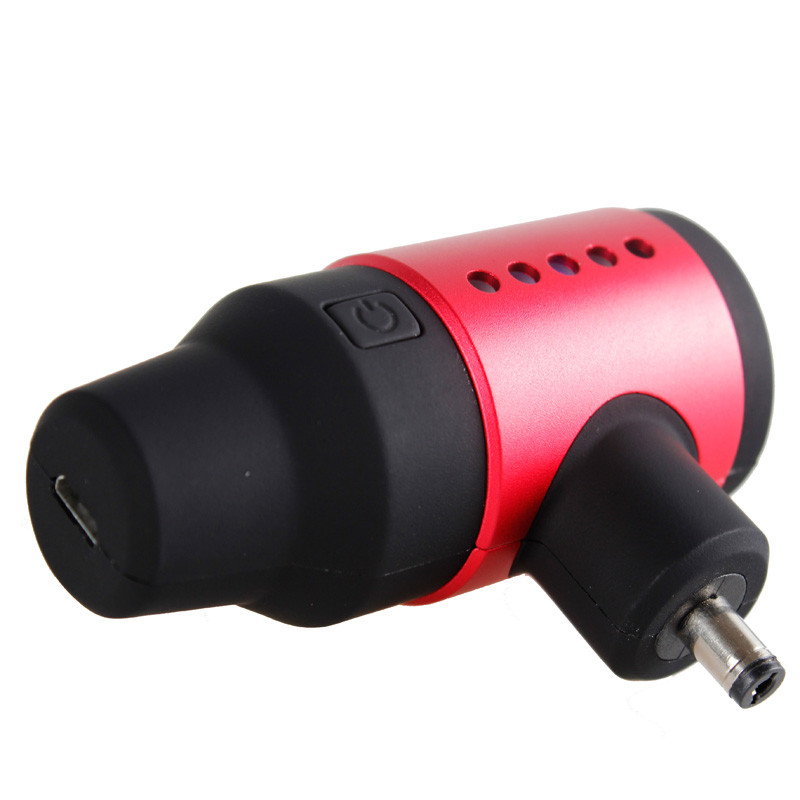

Tattoo Power Supply Wireless Battery Chargeable
Item code:DL-P04
Net weight: 63.3g
Size: 75mm (length) *32mm (width – thickness) *55mm (height)
Color: 2 colors black red – all black
Parameter:
- Interface:DC/RCA
- Material: aluminum alloy
- Lithium battery: three 550ma lithium batteries
- Charging time: fast charging, 1.5-2 hours can be filled
- Usable time: under the condition of normal 10V voltage, the stable voltage can last for 4 hours; under the condition of 8V voltage, the stable voltage can last for more than 4 hours;
Instructions:
The device is a power supply, with an input port, an output outlet, a built-in battery, a switch button and five led lights. The functions are as follows:
1. The input port provides power to this power supply, and the output port provides power to external devices. The built-in battery is 3 pieces, 550mA/ piece, 3.7v battery. The output current is fixed as 1A;
2. Output function, adjustable voltage :(5V, 6.5v, 8V, 9.5v, 11V) every double click on the key, switching voltage changes, the first light of 5V is on; 6.5v only the second light is on; 8V only the third light is on; 9.5v only the fourth light is on; 11V only the fifth light is on; Lights from left to right, a total of five stalls 5 lights,and they cycle in turn;
3. When the machine is not on, short press on the key to display the power (short press time: 2-3 seconds) : the first light on represents less than 20% of the power; The first two lights on represents 20~40%; The first three lights on represents 40~60%; The first four lights on represents 60~80%; 5 lights on 80~100%.
4. Long press the on key for 3 seconds to start up/shut down. The default output is 5V after starting up.
