Description
Detail Information:

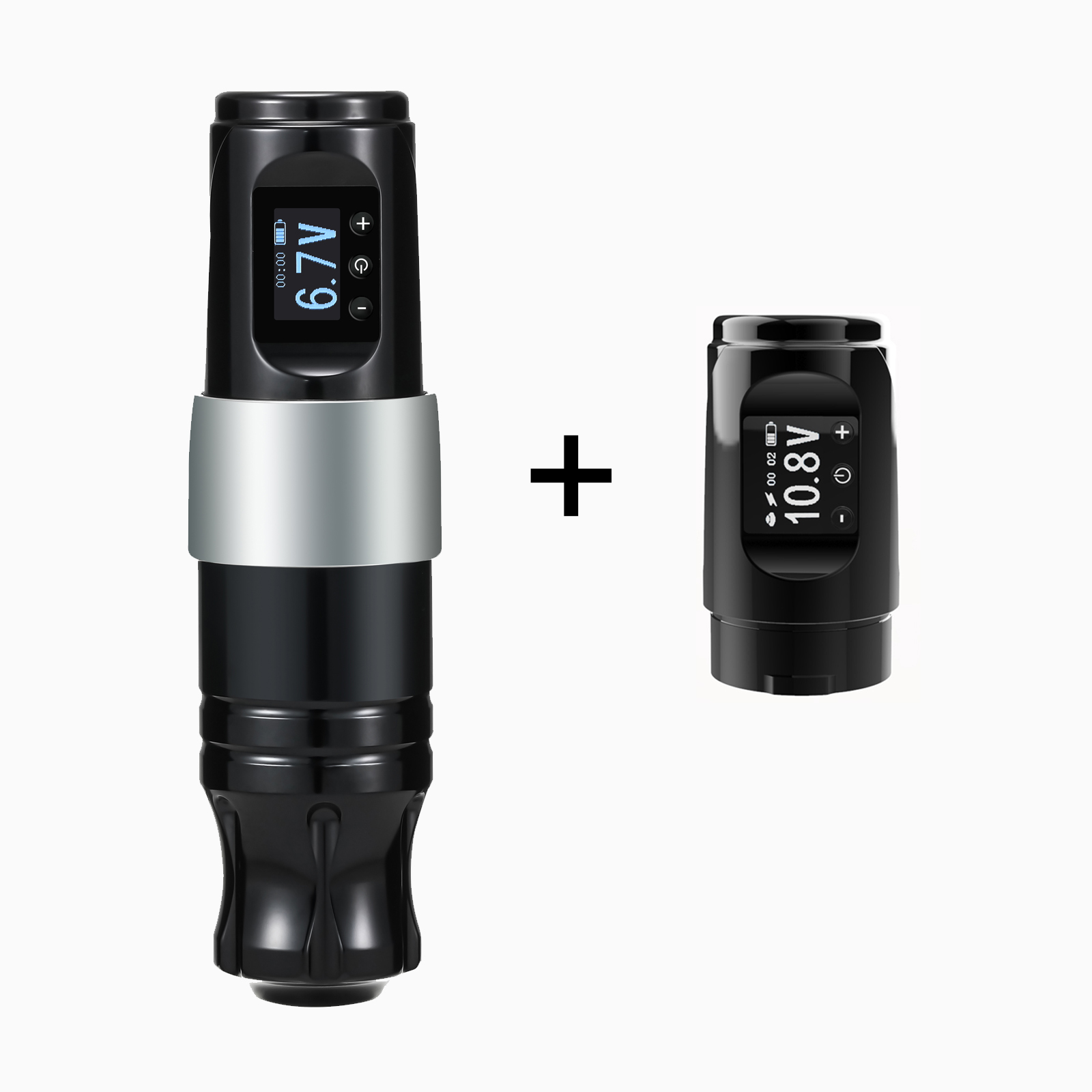

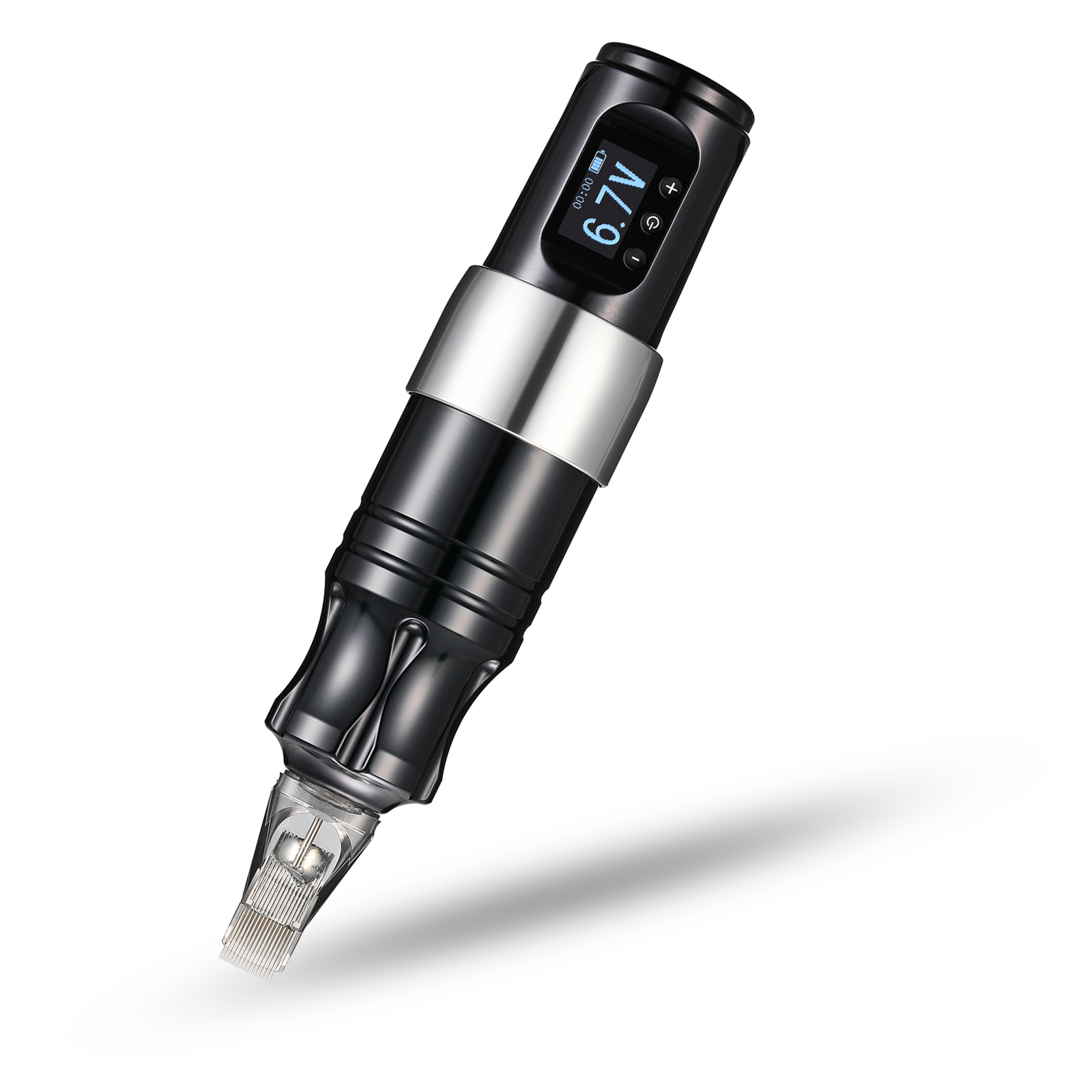

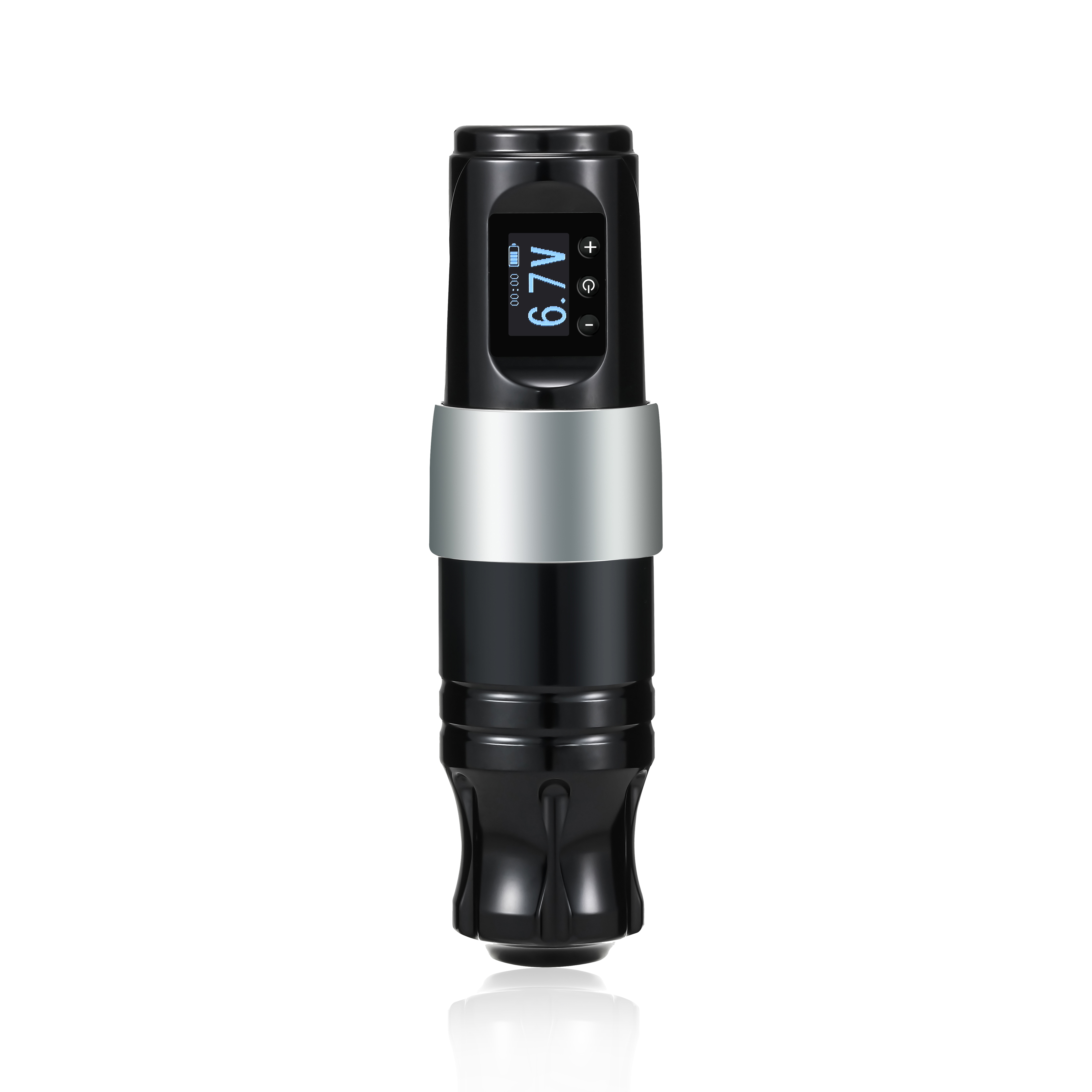

Product name: Wireless tattoo pen
Product Model: TP-042K
Weight: about 230g
Output voltage: 4-12V, 0.1V adjustment
Motor: hollow cup motor/12V-12000RPM
Display: OLED-0.78 inch / resolution 128*80
Battery capacity: 1800mAh
Working time: about 8 hours/8V
Charging time: about 2.5 hours
Charging interface: TYPE-C/5V/2A
Stroke: 4.0mm
How to use it
1. Connect the battery compartment clockwise to the motor section, and adjust the length of the needle.
2. Startup/Pause: Contains 2 startup modes. In shutdown state, long press the power button to enter the normal startup mode, then press the power button to start the machine, and then press the power button to stop the machine; in the shutdown state, double-click the power button to enter the enhanced startup mode. When the lightning sign appears, press the power button to start the machine, and it will rise to 10V in 0.2 seconds and then drop to the current set voltage, and then press the power button to stop the machine.
3. Shutdown: In the power-on state, long press the power button to shut down, 10 seconds without any button operation, the brightness of the display is reduced, saving power; automatic shutdown for 5 minutes without output, and automatic shutdown for 5 minutes with output and no load. When the battery is less than 5%, it will alarm the battery is too low, and then shut down.
4. Voltage adjustment: click the + button to increase the voltage, 0.1V increase, long press the + button to increase the voltage quickly; click the-button to decrease the voltage, 0.1V decrease, long press the-button to quickly decrease the voltage; voltage range 4- 12V.
5. Charging: Plug in the TYPE-C charging cable to charge, the display will prompt “Charging” when charging, and the display will prompt “Charge complete” after the charging is completed.
